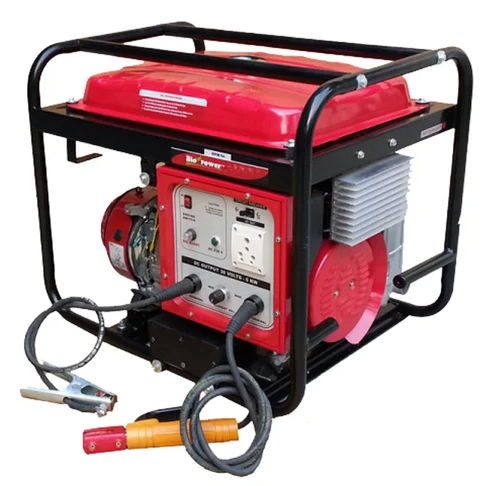

Welder cum Generator

Silent types brushless welding generator that demonstrates excellent welding performance with an auxiliary power supply.
A high-performance machine with a rugged design.
Infinitely variable current control for precise settings.
If necessary, extend the welding cable up to 100 meters.
Significant fuel savings and longer run times before the next refueling.
With a remote control device to adjust the amperage during welding.
Complies with CPCB noise and engine emission standards.
A smooth arc with integrated arc force, hot start, and non-stick function.
The welding and auxiliary outputs can be used simultaneously.
High amperage and low 1500 rpm engine speed extend engine life with minimal maintenance.
High-temperature resistance with Class H insulation.
The best choice for site applications and heavy fabrication jobs.

Specifications	Unit	Value
Welding Generator
Welding process	Type	Stick (SMAW)
Operators	No	Single
Welding current range	Amps, DC	50 to 400
Max. hand welding current @ 60% DC	Amps	400
Max. hand welding current @ 100% DC	Amps	310
Open circuit voltage (Max. / Min)	Volts	95/45
Suitable electrode diameter	mm	2.5 to 6.3
Engine
Engine	Type	C.R. – Kirloskar
Cylinder	No.	2
Rated engine speed	RPM	1800
Engine cooling	Type	Water cooled
Engine rating	BHP	28
Starting system		Electric starter
Battery capacity	V-Ah	12V-65Ah
Fuel type		Diesel
Auxiliary Power Source
Rating	kVA	7.5
Voltage	Volts	230
Phases	No	1
Rated frequency	Hz	50/60
Power factor		1.0
MCCB rating	Amps	16
General
Insulation grade		H
Protection degree		IP23
Fuel consumption	Ltrs./Hrs	2.8
Fuel tank capacity	Ltrs.	40
Sound level	dB(A)/7m	72
Structure type		Silent
Output sockets	No	2
Overall dimensions (LxWxH)	mm	1650x780x1045
Dry weight	kg	780
Undercarriage with towbar		2 wheels and leaf springs
