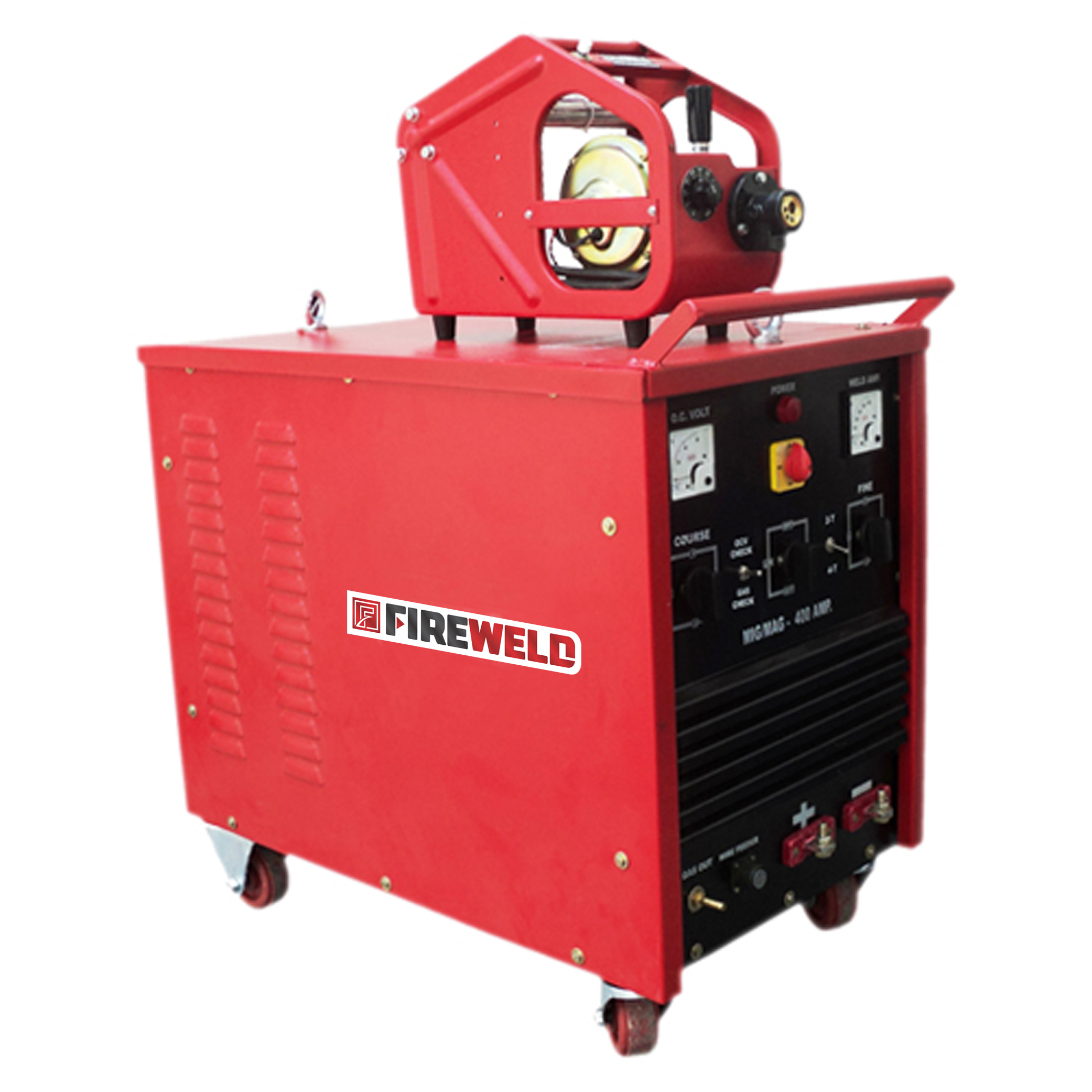

MIG 250 Diode Based

Diode control technology, approved for all location MIG/MAG welding operations
Applicable to weld vast length of metals like C.S, M.S., S.S., AI. And its alloys
User friendly section of 2T/4T application for almost maintenance free operation
Reliable thyristorized wire-feeder methodology establish long, uninterrupted welding
Maximum reliable and dependable workhorse welding machines with low functioning cost
Instant release wire feed roller mechanism enables operator to change the wire spool instantly
Rugged design, reliable functioning and superior arc characteristics appropriate for both outdoor and indoor usage

Parameter	Unit	FIRE-MIG251D	FIRE-MIG250D
Input voltage	Volt	230±10%	380/415±15%
Phase	No	1	3
Frequency	Hz	50/60	50/60
Max input KVA@60% duty cycle	KVA	7	8.5
Welding current range	Amps	50-250	50-250
Open current voltage	Volts DC	16-32	16-36
Welding current @60% duty cycle	Amps	250	250
Welding current @100% duty cycle	Amps	190	195
Insulation	Class	H	H
Wire feed speed	m/min	1.5 to 18	1.5 to 18
Suitable wire diameter	mm	0.6, 0.8, 1.0	0.6, 0.8, 1.0
Wire feeder motor voltage	Volts DC	42	42
Wire feed speed	–	External-double roll quick change over type	External-double roll quick change over type
Wire drive motor	Type	Permanent magnet DC type	Permanent magnet DC type
Welding output terminals	Type	Stud type	Stud type
Cooling	Type	Forced Air	Forced Air
Dimensions (LxWxH)	mm	800x510x680	800x510x680
Weight (approx)	kg	142	145
