| Specification | Unit | FIRE-CUT120i |
| Input voltage | Volt | AC415±15% |
| Phase | No | 3 |
| Frequency | Hz | 50/60 |
| Max input KVA@100% duty cycle | KVA | 19.5 |
| Rated input current | Amps | 38 |
| Open circuit voltage | Volts | 310 |
| Cutting current range | Amps | 20-120 |
| Cutting current @60% duty cycle | Amps | 120 |
| Power factor | CosΦ | 0.93 |
| Efficiency | % | 85 |
| Degree of protection | Class | IP23S |
| Insulation | Class | H |
| Air pressure required | Psi | 75-90 |
| Fine cutting thickness capacity | mm | 40 |
| Severance cutting thickness capacity | mm | 44 |
| Cooling | Type | Forced Air |
| Dimensions (LxWxH) | mm | 670x320x640 |
| Weight (approx) | Kg | 52 |

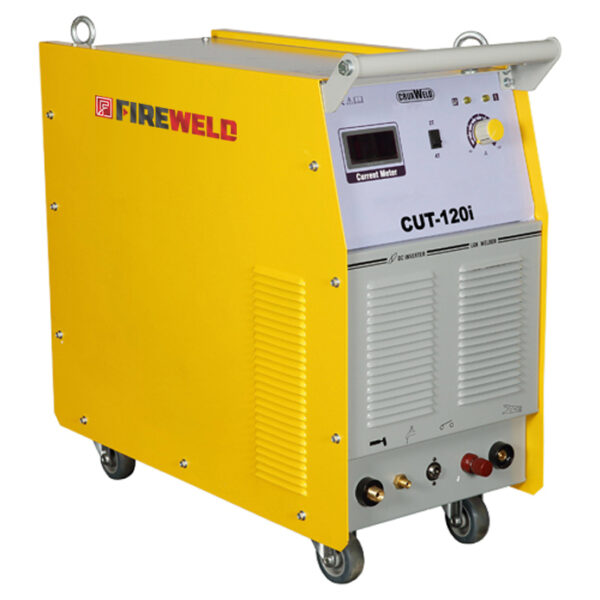

Plasma Cut 120
- Energy efficient outfit, built in with high efficiency and high power factor power source, saves power consumption and reduce energy bills up to 30%
- Air filter cum regulator assembly provided as a standard accessories to ensure clean cut, compressed air for excellent cut quality
- Adjustable Post Flow cooling allows the torch to cool down after the cut and enhance consumable and torch life
- Uses a high-frequency ignition, without interaction with the workpiece with more precise and faster cutting
- Cutting parameters stability within ±20% mains voltage fluctuations for long lasting consumable parts
- Separate selector switch for checking ‘Air Pressure’
- Appropriate for cutting any type of metal with no difficulty
- Arc factor electronic control for an outstanding cutting quality
- Light weight, compact, energy efficient power source cut down overall cutting cost
- Distortion free, dross free, burr free, narrow kerf width, exceptionally clean and smooth cut
- Flexible starting with Pilot arc improves functioning and cutting on impure, painted, or rusted metals
