| Input Power Voltage (v) | AC380V+-15% 3P |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 23.1A |
| Input Power | 15.1KVA |
| Open Circut Voltage | 293V |
| Current Range | 20-100A |
| Related Output Voltage | 120V |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Cutting thickness | <= 12mm |
| Arc initiating | Untouch |
| Air pressure (MPa) | 0.4-0.5MPa |
| Protection Class | IP21 |
| Weight | 36.5KG |
| Dimensions | 550X280X545 mm |

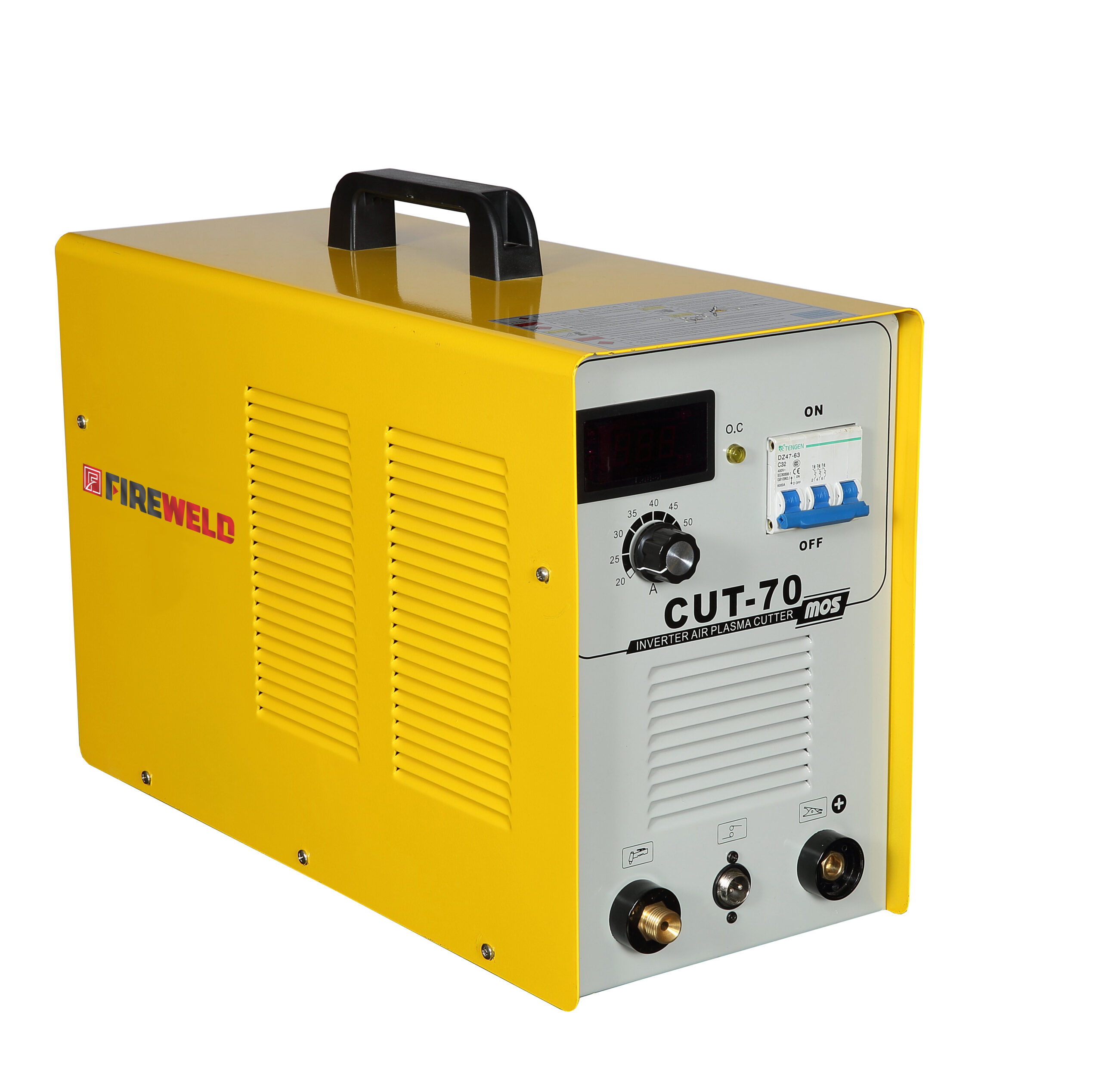

CUT 70 MOSFET – 3 PHASE
Adopt advanced MOSFET inverter technology, using non-crystal core and power units. Reliable, portable, light and high efficiency
Accessories:
- Cutting Torch
- Earth Clamp with Cable
- Air Filter
- Hose
- Hose Clamp
