High definition plasma cutting technique is the mainstay of this equipment. It cuts heavy metals by the high current of inverter technology with great ease and high precision. The powered equipment with fine and precise cutting. It works for conductive metals such as mild steel, stainless steel, aluminum, copper, and alloys.

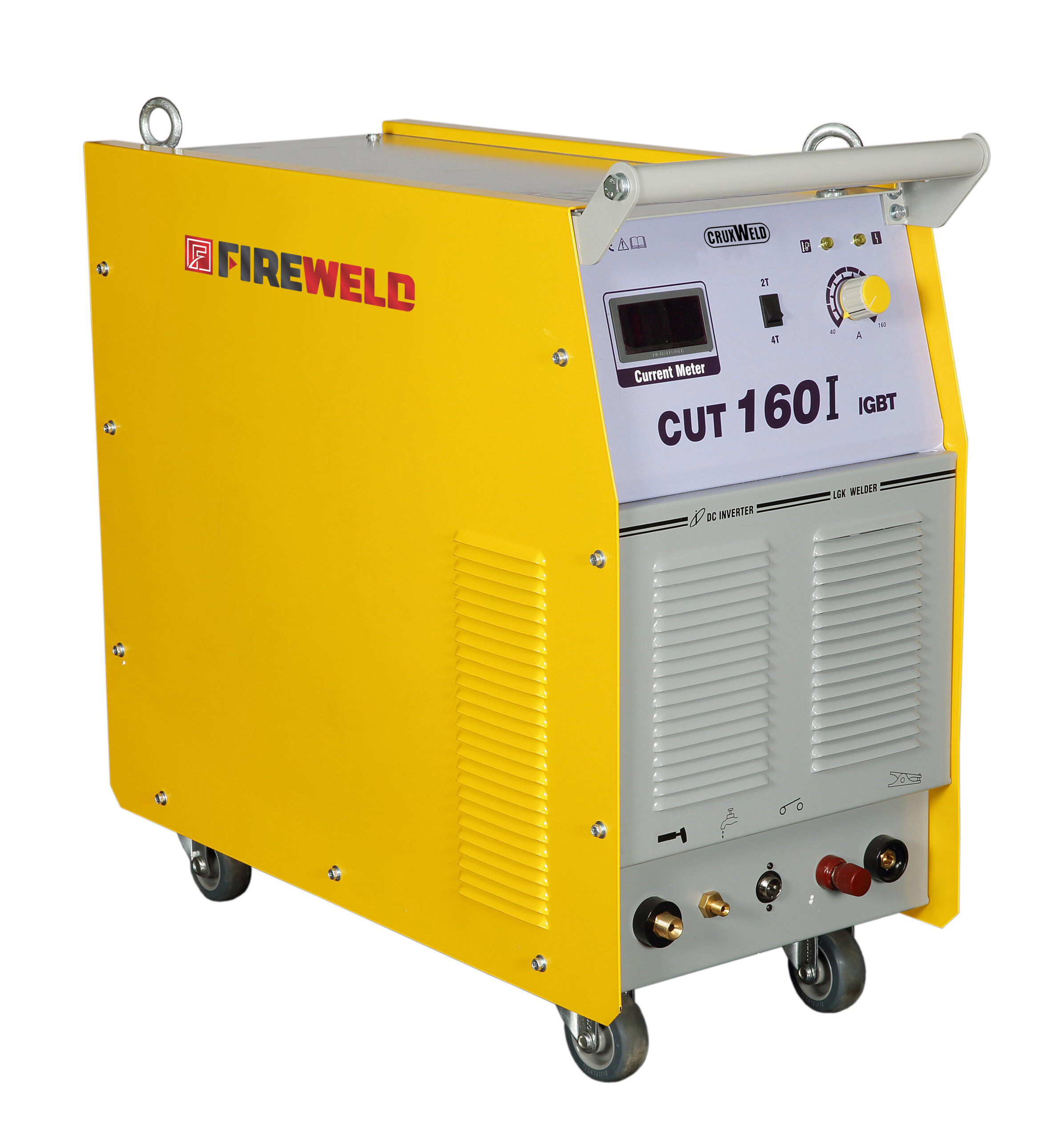

| Model | FIRE CUT 160 |
| Input voltage | 380/415V±15% |
| Phase | 3 |
| Frequency | 50/60Hz |
| Max input KVA@100% duty cycle | 26.5KVA |
| Rated input current | 44A |
| Open circuit voltage | 320V |
| Cutting current range | 20-160A |
| Cutting current @60% duty cycle | 160A |
| Power factor (Cosθ) | 0.93 |
| Efficiency | 85% |
| Degree of protection | IP23S |
| Insulation | H |
| Air pressure required | 85-110psi |
| Fine cutting thickness | 45mm |
| Severance cutting thickness | 50mm |
| Cooling | Forced air |
| Dimensions (LxWxH) | 670x320x640mm |
| Weight (approx) | 62kg |
